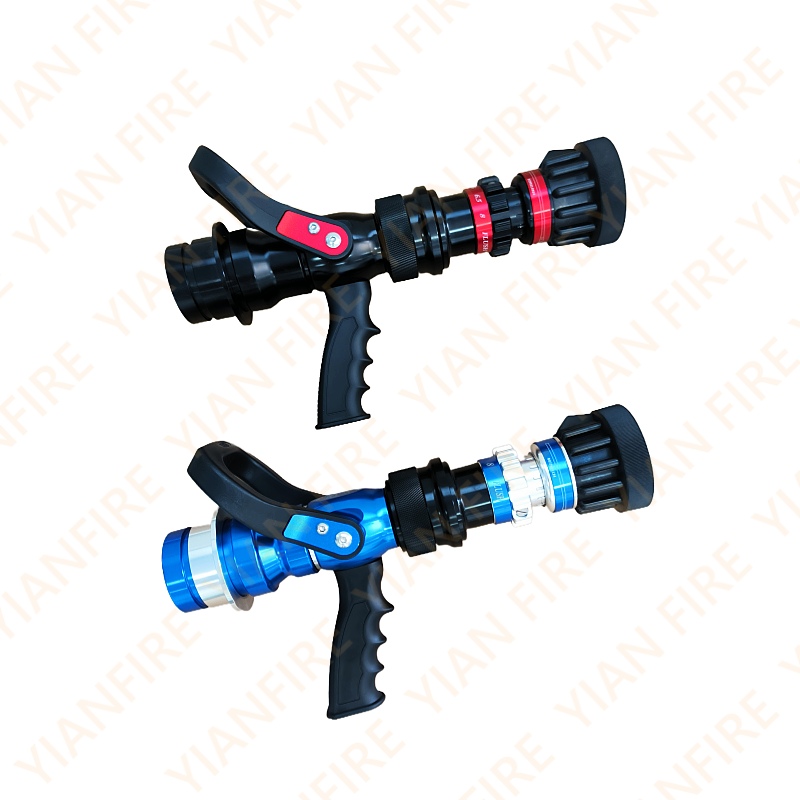

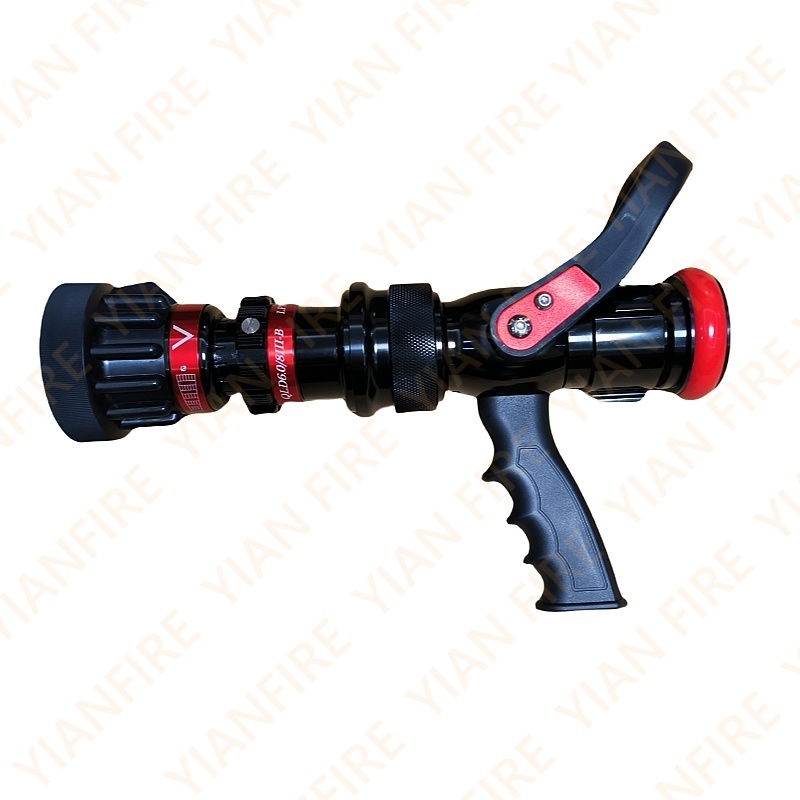

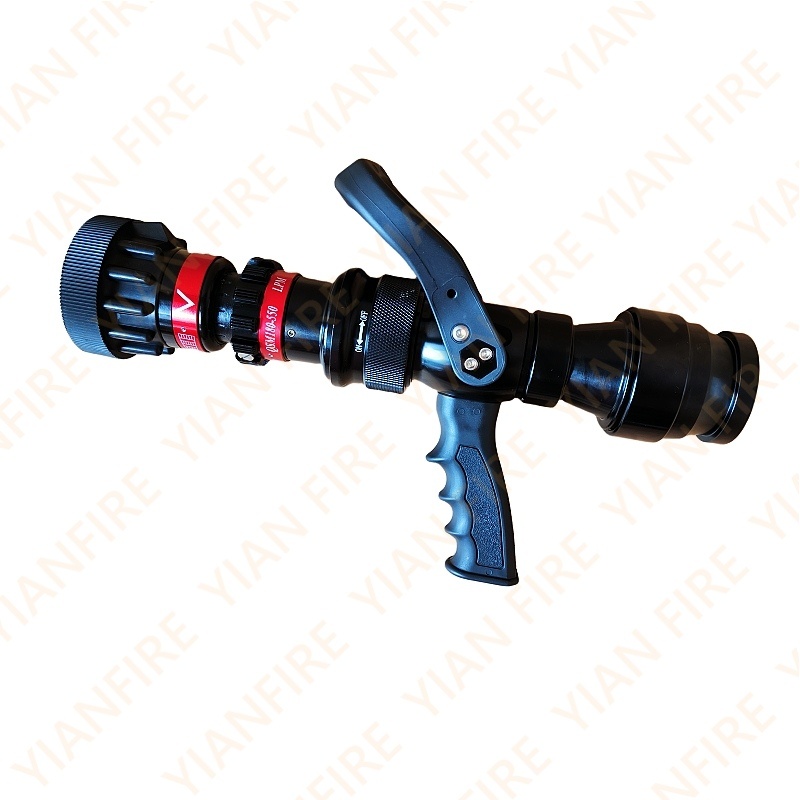

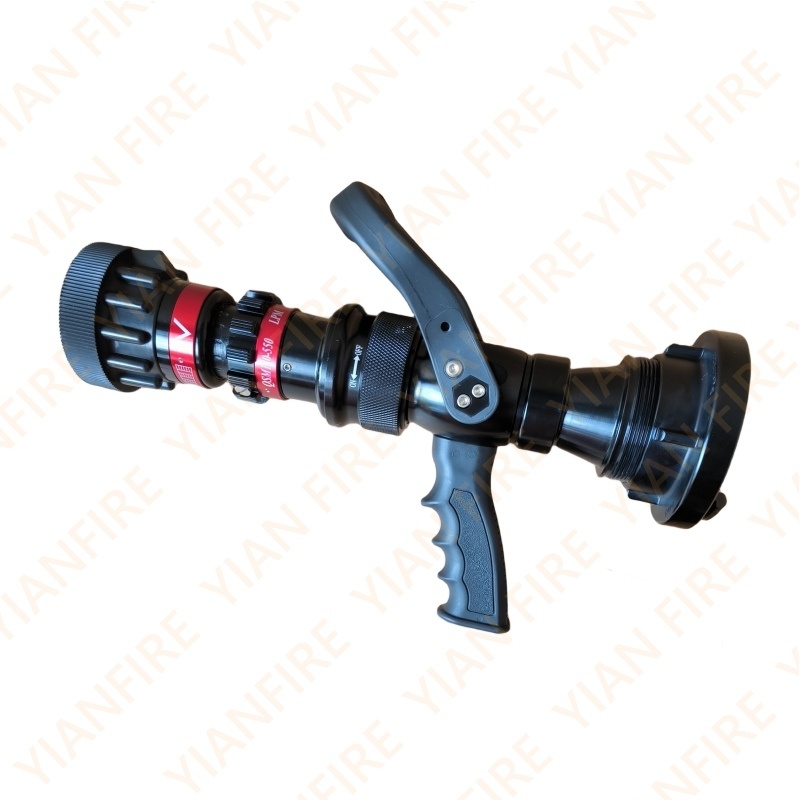

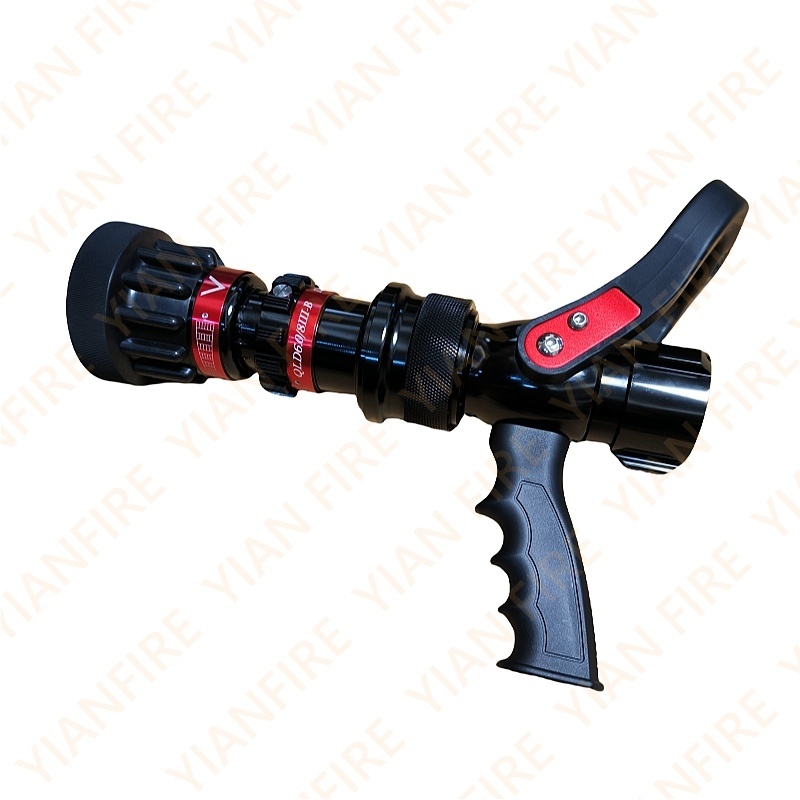

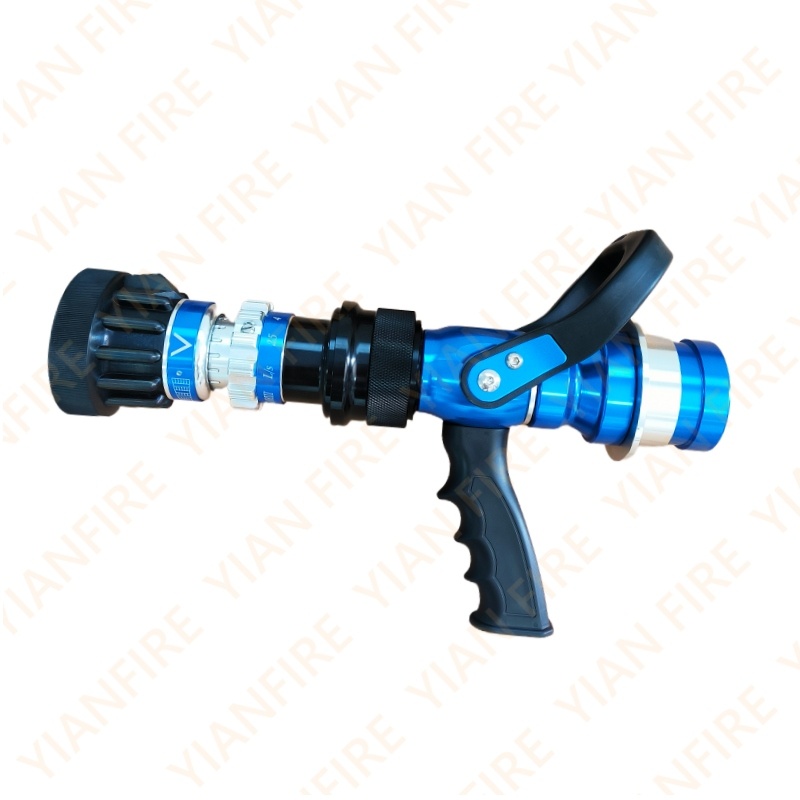

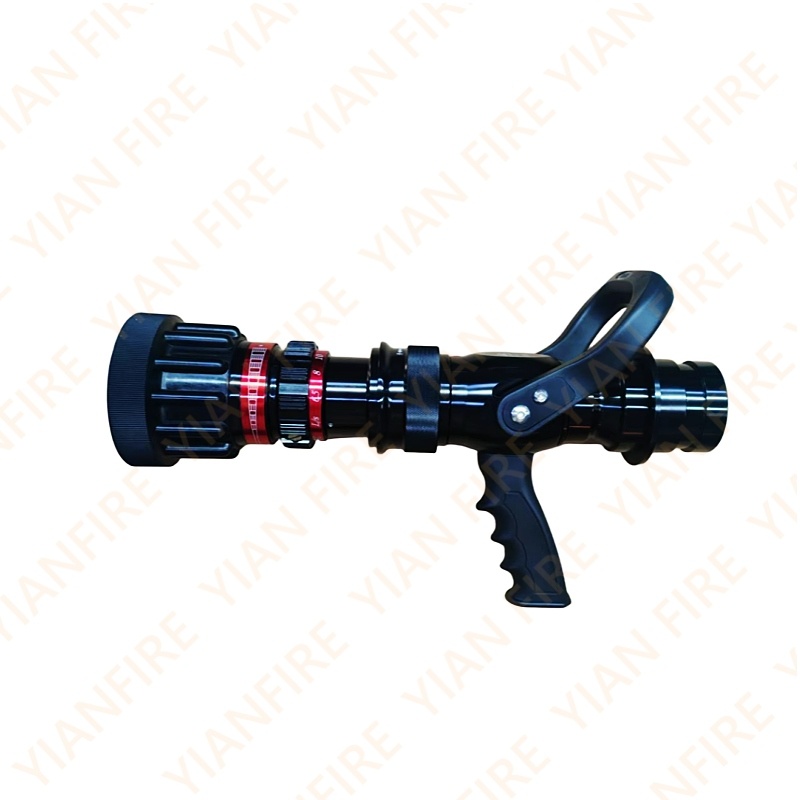

Double water-curtain fire hose nozzles

Product No.：2021525134451
Online Inquiry

Application:The doulbe -water curtain fire hose nozzle canproduce water sprays in fog and jet or fog and fog patterns at the same time. mainly used by fire bigrades for fire fighting, it can meet the technical requirements of various fire sites and fire changes.

Technical data

Model	QSM180-550	Opening/shutoff	by operating handle（ball valve switch）
Material	Aluminium	Surface treatment	hard anodisation
Working pressure	3.5-16bar	Selectable stream pattern	Jet-spray-fog -2 water-curtain .
Flow rate	115-230-360-475 LPM/ 30-60-95-125 GPM@6bar	Connection type	Storz,John Morris,Gost,Machino, NH,etc
Inlet size	1.5”-2”-2.5” (40-50-65mm)	weight	2.3kg

Features:

Mainly for firefighting forces for various fire and different fire changes.
Made of strong lightweight aluminum alloy,hard anodized surface treatment.
360 degree swivel,anti-hose knot
Tactile and visual indicators permit the user to know the type of stream even in total darkness and while wearing firefighting gloves
Easy to open and close the water flow by the fast ball valve switch
The selectable flow enables the user to select different flow to meet different kinds of fire.
Little recoil force.
Ergonomic, anti-slip polyurethane pistol grip.
Pins and screws in stainless steel.
