Products >> FIRE NOZZLE / MONITOR >>

  • portable fire monitor PSY20-40 YA
  • portable fire monitor PSY20-40 YA
  • portable fire monitor PSY20-40 YA
  • portable fire monitor PSY20-40 YA
portable fire monitor PSY20-40 YA portable fire monitor PSY20-40 YA portable fire monitor PSY20-40 YA portable fire monitor PSY20-40 YA

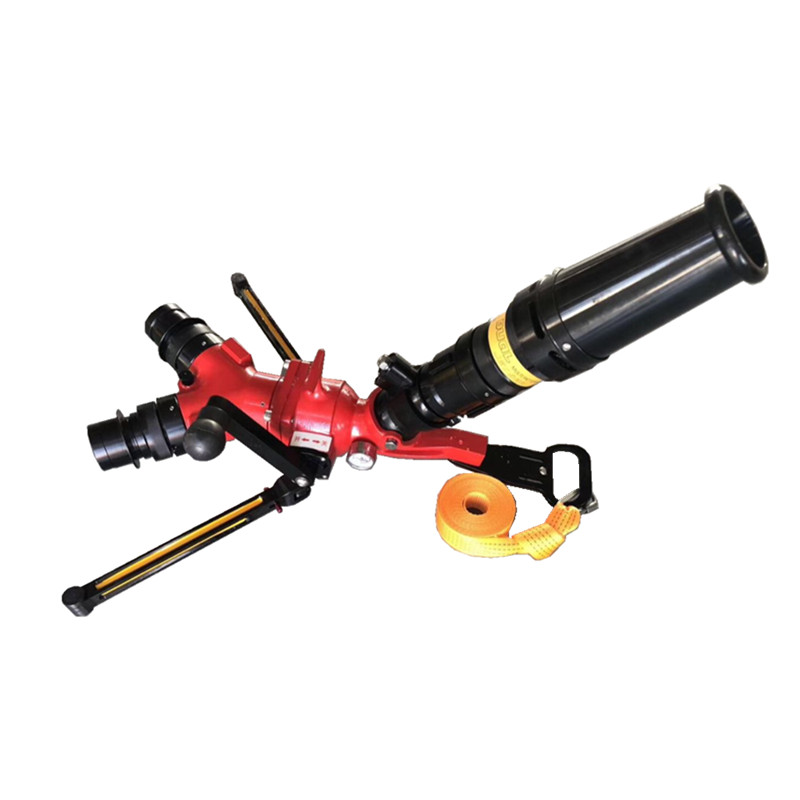

portable fire monitor PSY20-40 YA

Fire monitor/cannon is mainly composed of base, water inlet pipe, rotary body, inlet pipe,pattern adjustment ring,handwheels,lifting handle and locking mechanism. The monitor/ cannon has a wide pressure range, a long firing range and can implement jet stream and fog pattern. It’s an important fire-fighting equipment for long-distance fire fighting. It could be divided into two series: fire water monitor and fire foam monitor.Fire water monitor/cannon is a fire-fighting equipment for spraying water and extinguishing general solid substances from a long distance, and fire foam monitor/cannon is a fire-fighting equipment for spraying air foam to extinguish Class A, B, and C liquid fires from a long distance. It is suitable for petrochemical enterprises, storage tank farms, hangars, warehouses, port terminals and other places, and an ideal vehicle-mounted fire monitor /cannon for fire trucks.

Features

1.Weight of this fire monitor is less than 13kg, can be operated by one person;
2.Flow adjustable 20-30-40l/s by the monitor head;
3.360 degree rotary inlet joint to prevent hose knotting;
4.The 2 supporting feet can be folded for easy storage, and the positioning operation can be carried out by pulling the foot spring;
5. The foot supports are equipped with anti-skid tungsten steel nails to prevent the water monitor/cannon from sliding during operation, and the tungsten steel nails are equipped with spring damping mechanism, which can be adjusted automatically on uneven road and play the role of buffering recoil force;
6. Valve locking device, avoid opening the valve by mistake in the process of moving operation, which may cause personal injury;
7. Made of Light aluminum alloy, surface anodized
8.Foam tube could be added for bette foam performance.
fire monitor with foam tube fire fighting water cannon fire truck monitor fire nozzle
Technical data
1. Flow Range: 20-30-40 L/S Adjustable
2.Working Pressure: 8 bar
3.Max Reach @ Max Flow: 65m
4.Range of motion: Horizonal 90°pitch: 30 ° + 80 °
5.Material: Aluminum alloy
6.Weight:12.5kg
