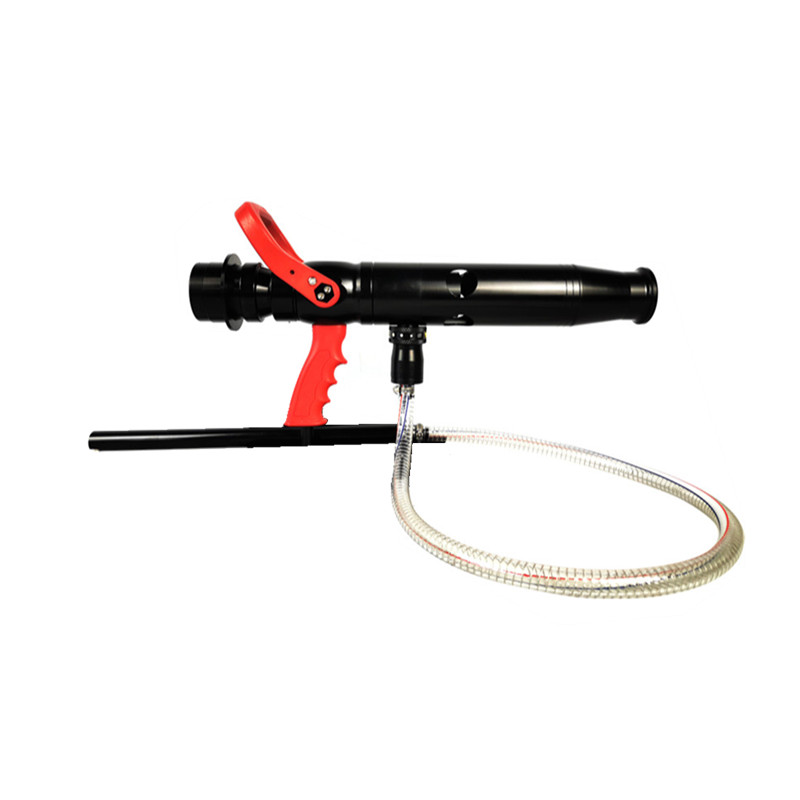

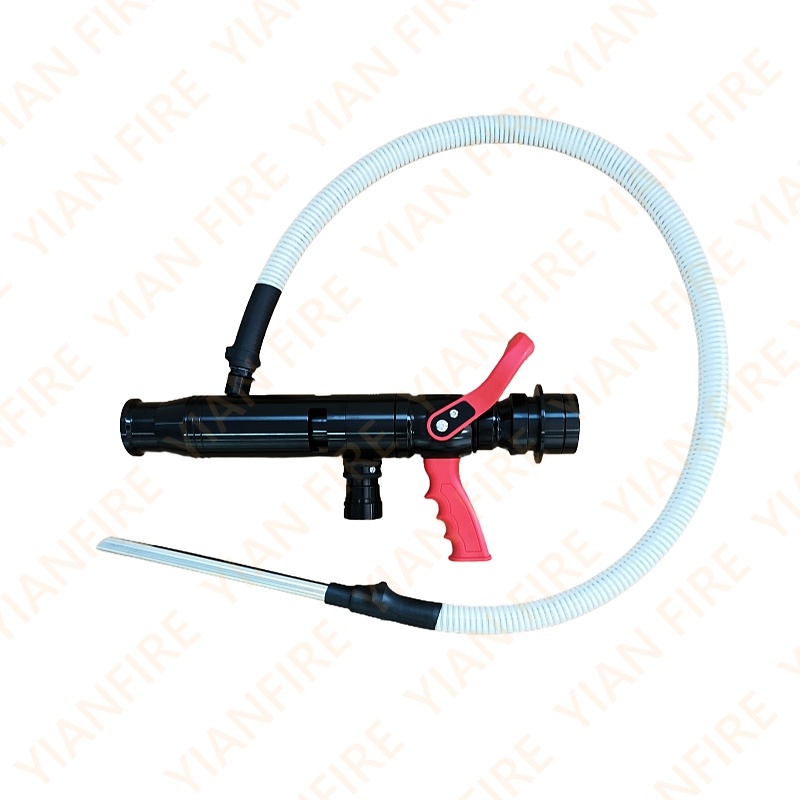

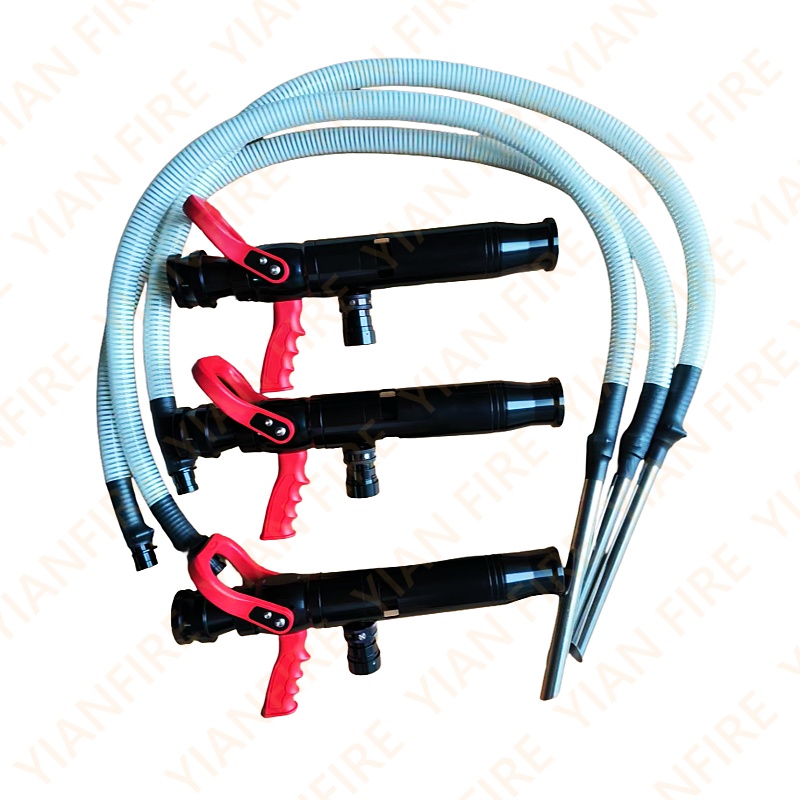

Fire foam nozzle PQ8

Fire foam nozzle application:PQ8 type self-priming fire foam nozzle is a good lightweight fire fighting equipment for oil and other liquids fire, such as small oil tanks, surface oil, other oil products, timber/wood fires, solid fires. It can spray high-quality foam or self-priming foam liquid, also could be used as ordinary fire nozzle.
Firefighting foam nozzle foam branches Foam Branchpipe Fire Hose Foam Nozzle Inducting Foam Nozzle,Portable Foam Equipment,Low-Expansion Foam Nozzle,Firefighting Foam Discharge Device,Foam Eductor Nozzle,CAFS (Compressed Air Foam System) Nozzle,Water-Powered Foam Eductor,Portable Foam Monitor Nozzle
Fire foam nozzle technical data:
Model PQ8 Opening/shutoff by operating handle(ball valve switch)
Material Aluminum alloy  Surface treatment hard anodisation
Working pressure 3.5-16bar Selectable pattern water/foam
Flow rate
480LPM/@6bar
Connection type Storz,John Morris, Gost,Machino,  NH,etc
Inlet size 1.5”-2”-2.5”(40-50-65mm) weight 3.3kg









Fire foam nozzle Features:
  • Mainly for firefighting forces for various fire and different fire changes.
  • Made of strong lightweight aluminum alloy,hard anodized surface treatment.
  • 360 degree swivel,anti-hose knot
  • An adjustable priming nozzle is designed. Foam liquid 2.5L/min-14L/min can be obtained by rotating the adjusting ring.
  • Easy to open and close the water flow by the fast ball valve switch
  • Little recoil force.
  • Ergonomic, anti-slip polyurethane pistol grip.
