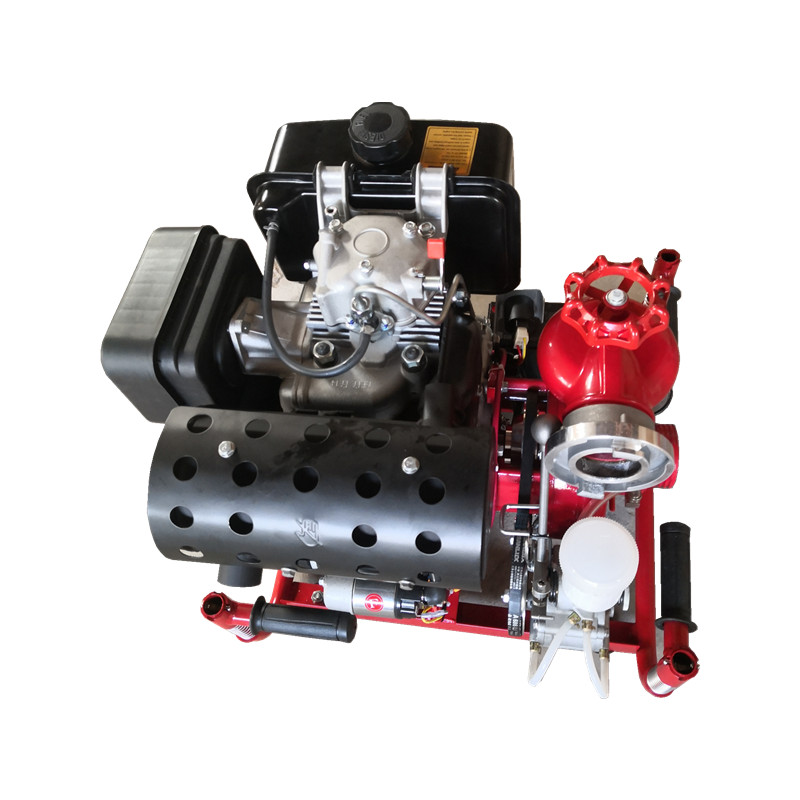

Diesel fire fighting pump set BJ10B-B
- Product No.:2022718165551
Diesel fire fighting pump set application: mainly for fire fighitng, especailly for the places where fire vehicles could not reach for it has unique flexible advantages. It is an ideal fire fighting equipment for all kinds of fire brigades, flammable and explosive enterprises in cities/towns, cultural relic protection units, large warehouses, oil depots, stations, docks, ports, ships, temples, freight yards, forestry and other units that need fire prevention. It can also be used for flood fighting and drainage, long-distance water supply, site washing, etc.

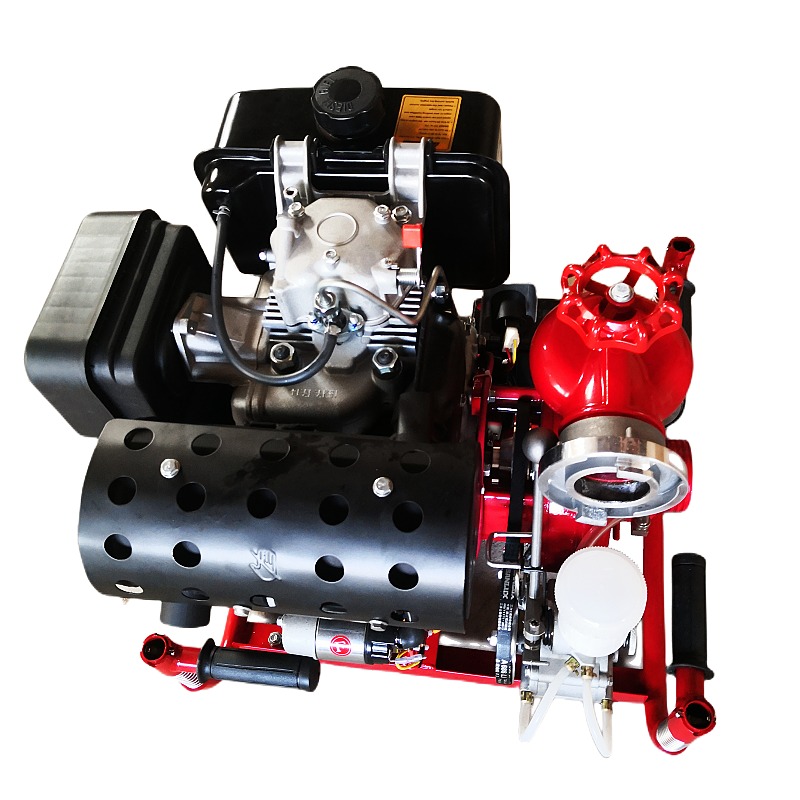

![Diesel engine driven fire pump,ship fire fighting water pump,fire truck mounted fire pump Bomba contra incendios accionada por motor diésel, bomba de agua contra incendios para barcos, bomba contra incendios montada en camión de bomberos Pompa kebakaran yang digerakkan mesin diesel, pompa air pemadam kebakaran kapal, pompa kebakaran yang dipasang truk pemadam kebakaran Máy bơm chữa cháy chạy bằng động cơ diesel, máy bơm nước chữa cháy trên tàu, máy bơm chữa cháy gắn trên xe cứu hỏa เครื่องสูบน้ำดับเพลิงที่ใช้เครื่องยนต์ดีเซล, เครื่องสูบน้ำดับเพลิงสำหรับเรือ, รถดับเพลิงติดเครื่องสูบน้ำดับเพลิง ဒီဇယ်အင်ဂျင်ဖြင့် မောင်းနှင်ထားသော မီးသတ်ပန့်၊ သင်္ဘော မီးသတ်ရေစုပ်စက်၊ မီးသတ်ကား တပ်ဆင်ထားသော မီးသတ်ပန့် Πυροσβεστική αντλία που κινείται από μηχανή ντίζελ. Πυροσβεστική αντλία πλοίου? Πυροσβεστική αντλία εξοπλισμένη με πυροσβεστικό όχημα](/pic/other/2023-03-01-09-40-044.jpg)
BJ10B-B/15HP Diesel fire fighting pump set data
![Diesel engine driven fire pump,ship fire fighting water pump,fire truck mounted fire pump Bomba contra incendios accionada por motor diésel, bomba de agua contra incendios para barcos, bomba contra incendios montada en camión de bomberos Pompa kebakaran yang digerakkan mesin diesel, pompa air pemadam kebakaran kapal, pompa kebakaran yang dipasang truk pemadam kebakaran Máy bơm chữa cháy chạy bằng động cơ diesel, máy bơm nước chữa cháy trên tàu, máy bơm chữa cháy gắn trên xe cứu hỏa เครื่องสูบน้ำดับเพลิงที่ใช้เครื่องยนต์ดีเซล, เครื่องสูบน้ำดับเพลิงสำหรับเรือ, รถดับเพลิงติดเครื่องสูบน้ำดับเพลิง ဒီဇယ်အင်ဂျင်ဖြင့် မောင်းနှင်ထားသော မီးသတ်ပန့်၊ သင်္ဘော မီးသတ်ရေစုပ်စက်၊ မီးသတ်ကား တပ်ဆင်ထားသော မီးသတ်ပန့် Πυροσβεστική αντλία που κινείται από μηχανή ντίζελ. Πυροσβεστική αντλία πλοίου? Πυροσβεστική αντλία εξοπλισμένη με πυροσβεστικό όχημα](/pic/other/2023-03-01-09-40-044.jpg)
BJ10B-B/15HP Diesel fire fighting pump set data
Engine Model | Single,air-cooled,4-stroke,direct injection,192 |
Displacement | 499ml |
Max theoretical power | 15hp |
Pump body | Single stage centrifugal |
Fuel tank capacity | 6.5L |
Oil capacity | 1.65L |
Rated flow | 600L/min |
Rated pressure | 0.45mpa |
Max suction depth | ≥7m |
Priming type | Rotary vane vacuum pump |
Priming time | ≤10s |
Pump head | 70m |
Inlet | 65mm |
Outlet | 65mm |
Weight | 80kg |
Appearance size | 660*520*560mm |
