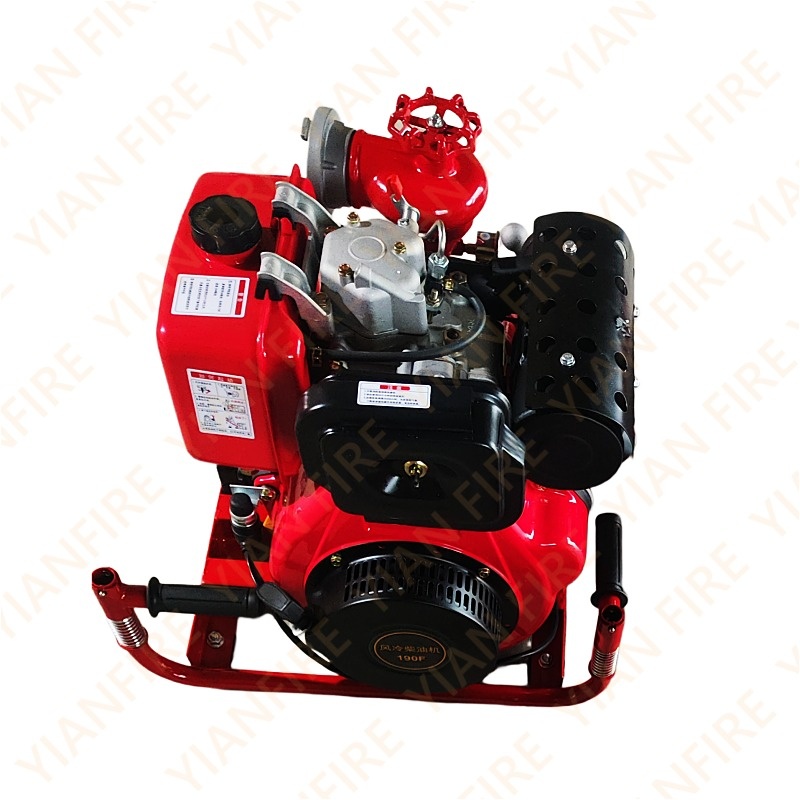

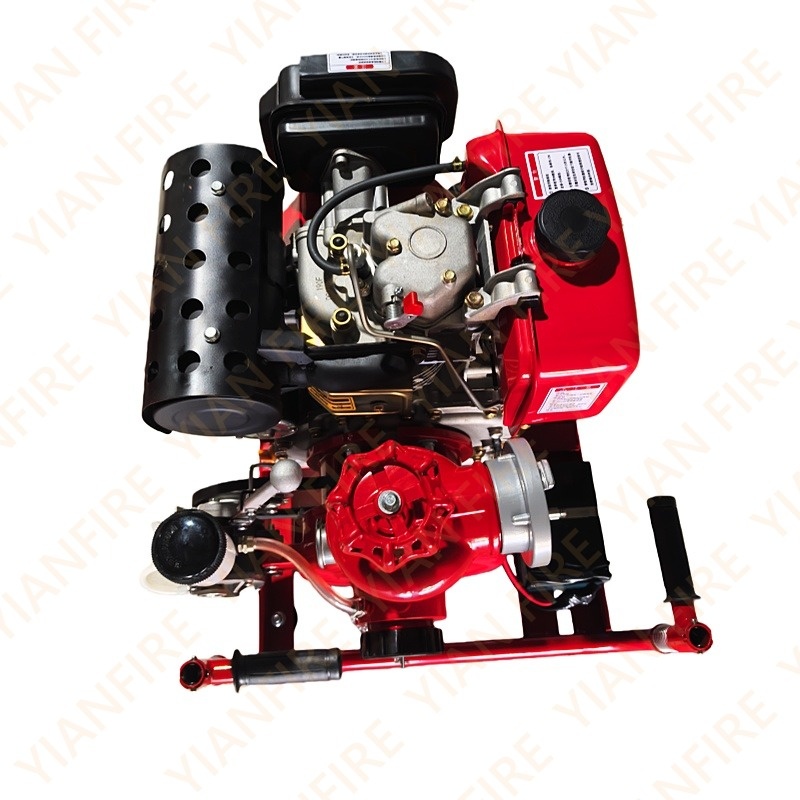

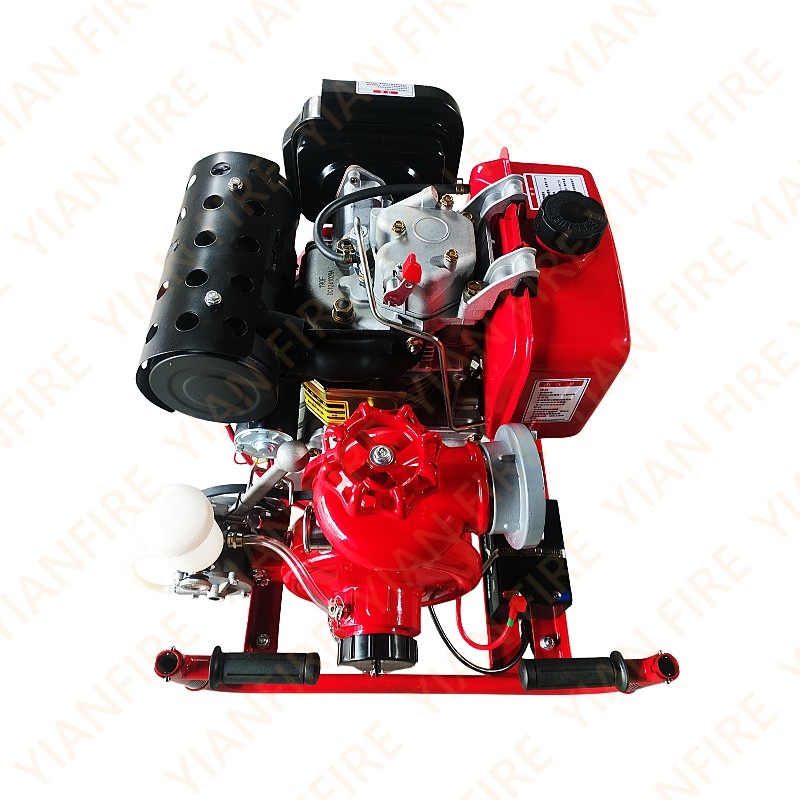

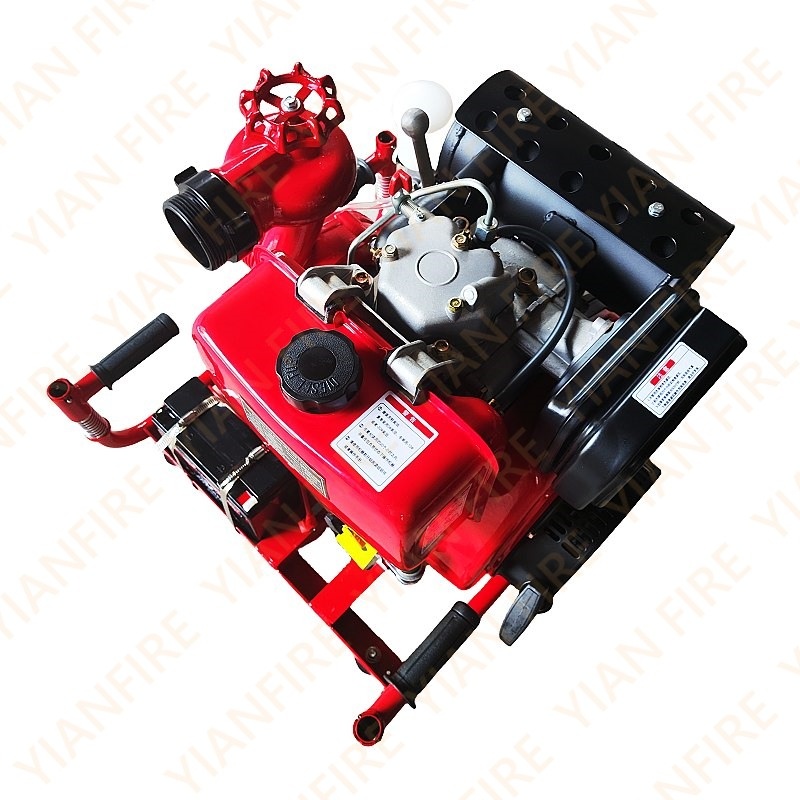

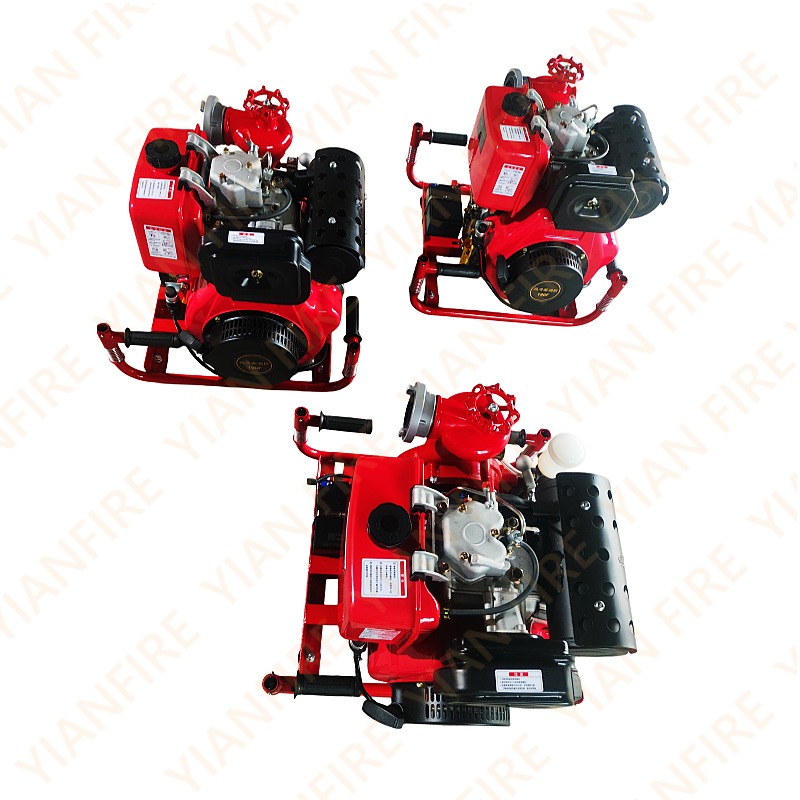

Portable diesel engine fire pump application: mainly for fire fighitng, especailly for the places where fire vehicles could not reach  for it has unique flexible advantages. It is an ideal fire fighting equipment for all kinds of fire brigades, flammable and explosive enterprises in cities/towns, cultural relic protection units, large warehouses, oil depots, stations, docks, ports, ships, temples, freight yards, forestry and other units that need fire prevention. It can also be used for flood fighting and drainage, long-distance water supply, site washing, etc.

Engine Model	Single,air-cooled,4-stroke,direct injection,190
Displacement	438ml
Max theoretical power	13hp
Pump body	Single stage centrifugal
Fuel tank capacity	6.5L
Oil capacity	1.65L
Rated flow	600L/min
Rated pressure	0.45mpa
Max suction depth	≥7m
Priming type	Rotary vane vacuum pump
Priming time	≤10s
Pump head	65m
Inlet	65mm
Outlet	65mm
Weight	75kg
Appearance size	660*520*560mm
