  • High pressure water mist device with trolley QXWL120/25BC-150
  • High pressure water mist device with trolley QXWL120/25BC-150
High pressure water mist device with trolley QXWL120/25BC-150 High pressure water mist device with trolley QXWL120/25BC-150

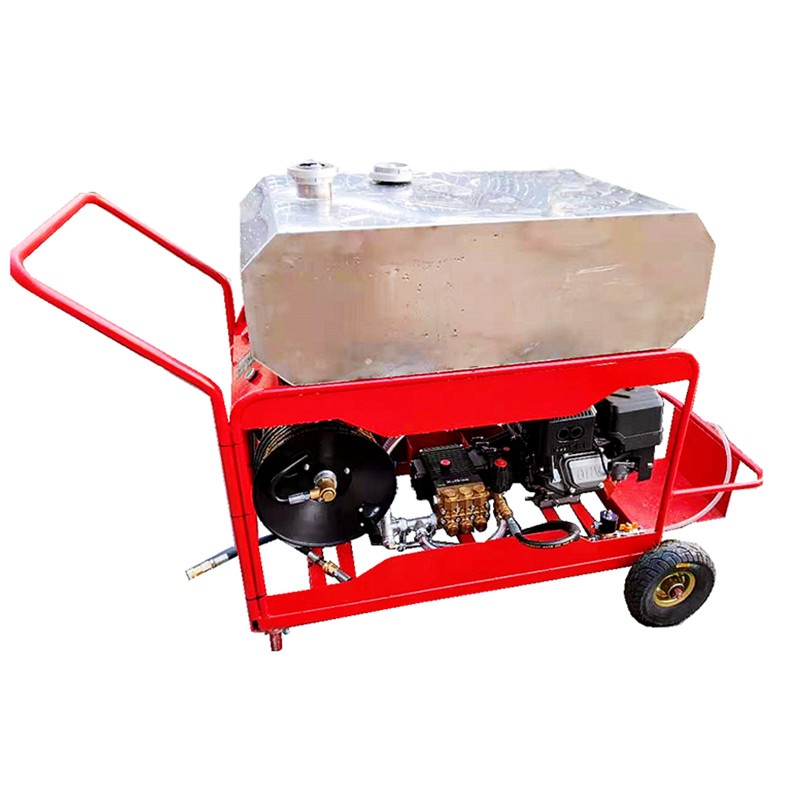

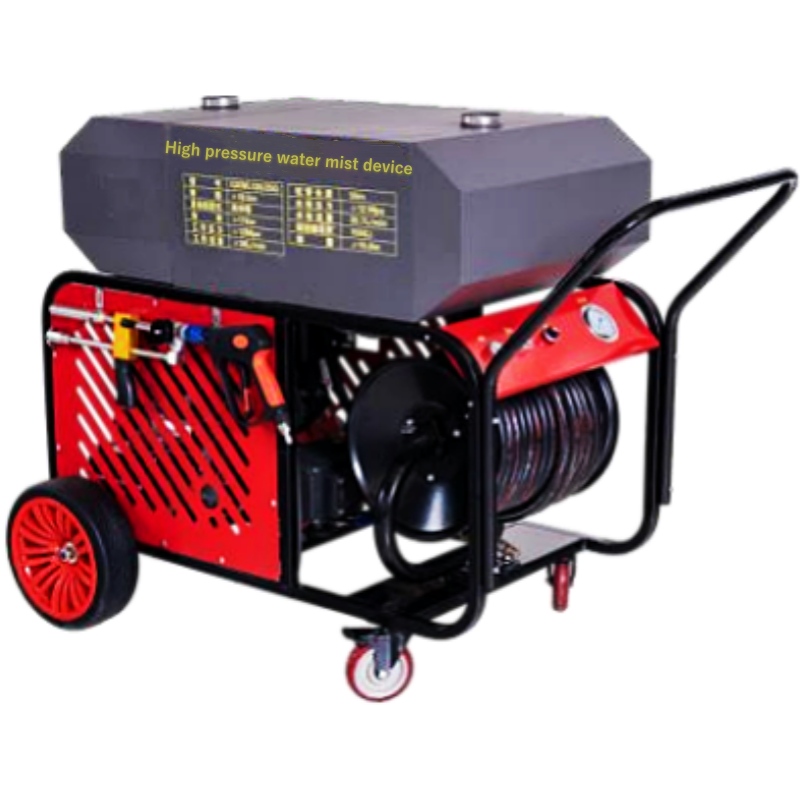

High pressure water mist device with trolley QXWL120/25BC-150

Application:
High pressure water mist fire extinguishing device, also called high pressure water mist gun, is mainly composed of high efficiency four stroke air-cooled engine, high pressure pump set, hose reel, high-pressure hose, and high pressure water mist gun. It has main features of compact structure, simple operation, strong fire extinguishing ability, sustainable fire extinguishing, no pollution to the environment and no harm to human body. It is suitable for large workshop, commercial place, community, subway station, tunnel and construction.

High pressure water mist fire extinguishing device QXWL120/25BC-150 data
Engine Model Single,air-cooled,4-stroke,Diesel,LF192
Starting system Recoil/Electric
Hose length 30m
Water jet Range 16m
Water mist Range 14.5m
Pump Rated Flow 25L/min
Pump Rated Pressure 120Bar
Water Jet Pressure Rated 120Bar
Water Jet Rated Flow 25L/min
Water Mist Jet Pressure Rated 120Bar
Water Mist Jet Rated Flow 25L/min
Dv0.99 ≤99.27um
Fire Extinguishing Performance Level 20A,297B
Appearance size 1400*800*1100mm
