Products >> WATER MIST DEVICE >>

  • High pressure water mist fire extinguishing deviceQXWL120/25BQ
  • High pressure water mist fire extinguishing deviceQXWL120/25BQ
High pressure water mist fire extinguishing deviceQXWL120/25BQ High pressure water mist fire extinguishing deviceQXWL120/25BQ

High pressure water mist fire extinguishing deviceQXWL120/25BQ

Application:

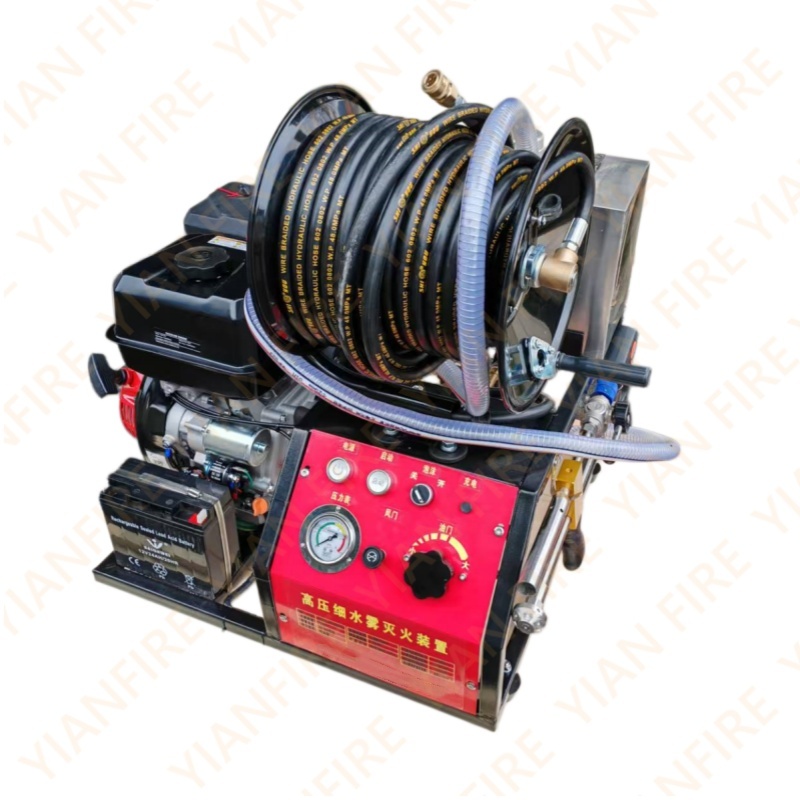

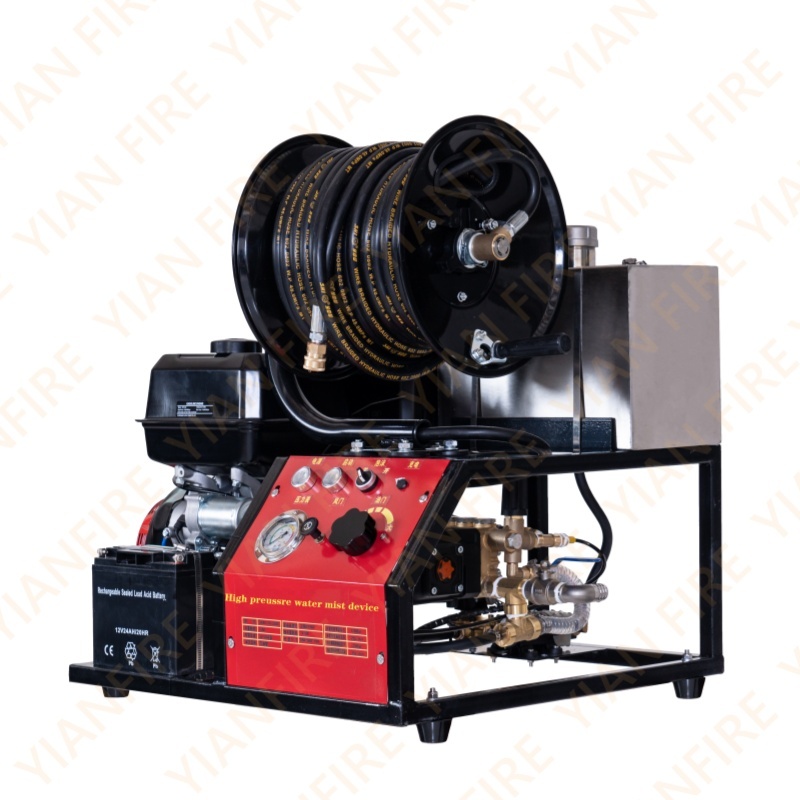

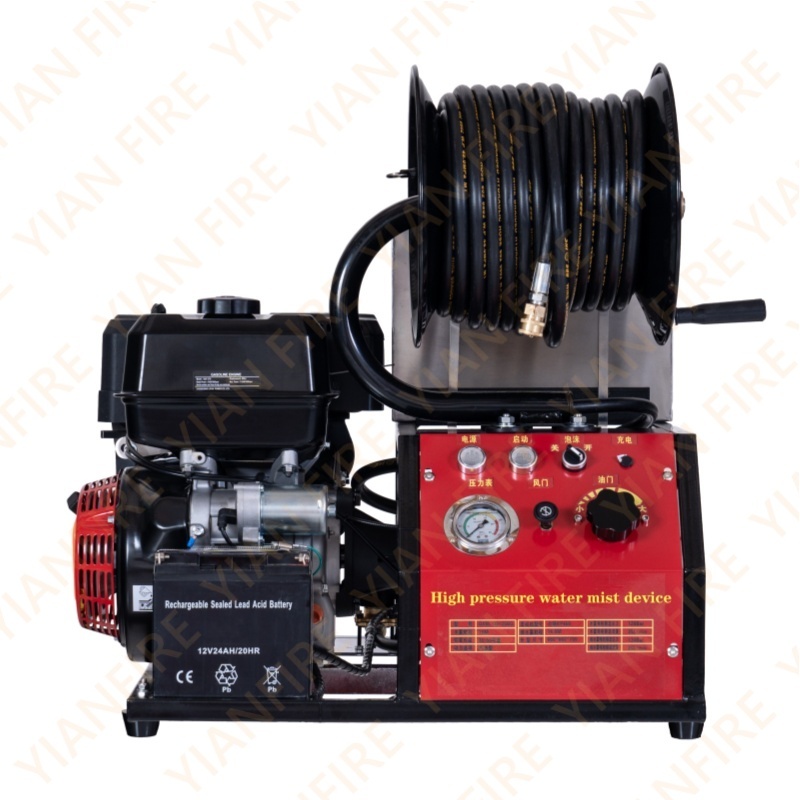

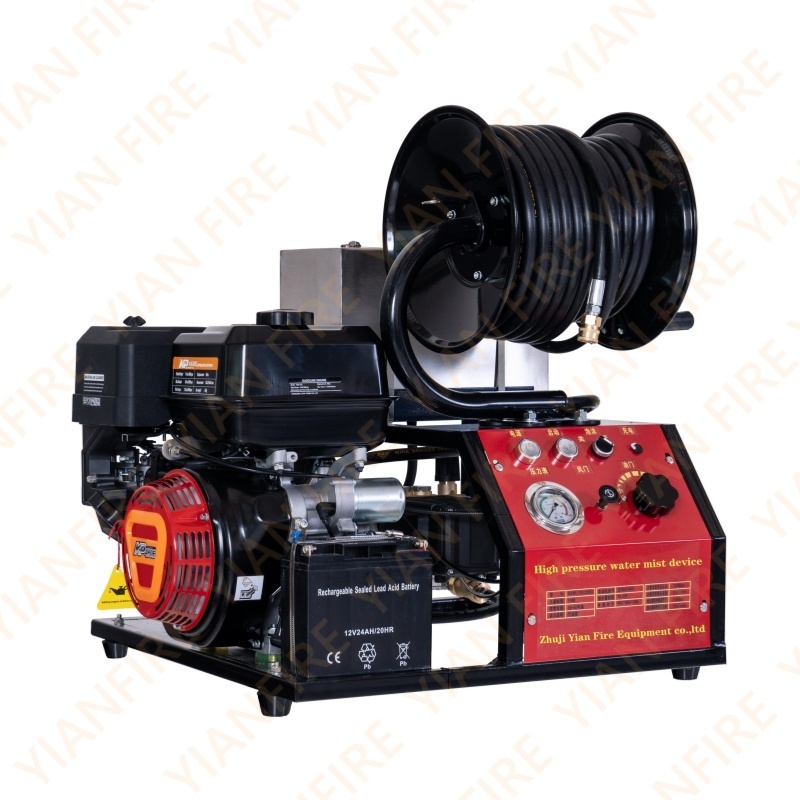

High pressure water mist fire extinguishing device, also called high pressure water mist gun, is mainly composed of high efficiency four stroke air-cooled engine, high pressure pump set, hose reel, high-pressure hose, and high pressure water mist gun. It has main features of compact structure, simple operation, strong fire extinguishing ability, sustainable fire extinguishing, no pollution to the environment and no harm to human body. It is suitable for large workshop, commercial place, community, subway station, tunnel and construction.

High pressure water mist fire extinguishing deviceQXWL120/25BQ data
Engine Model Single,air-cooled,4-stroke,gasoline,LF190
Starting system Recoil/Electric
Hose length 30m
Water jet Range 18m
Water mist Range 14.5m
Pump Rated Flow 25L/min
Pump Rated Pressure 120Bar
Water Jet Pressure Rated 120Bar
Water Jet Rated Flow 25L/min
Water Mist Jet Pressure Rated 120Bar
Water Mist Jet Rated Flow 25L/min
Dv0.99 ≤400um
Fire Extinguishing Performance Level 20A,297B
Appearance size 800*650*700mm
