  • Diesel fire pump BJ22B
  • Diesel fire pump BJ22B
Diesel fire pump BJ22B Diesel fire pump BJ22B

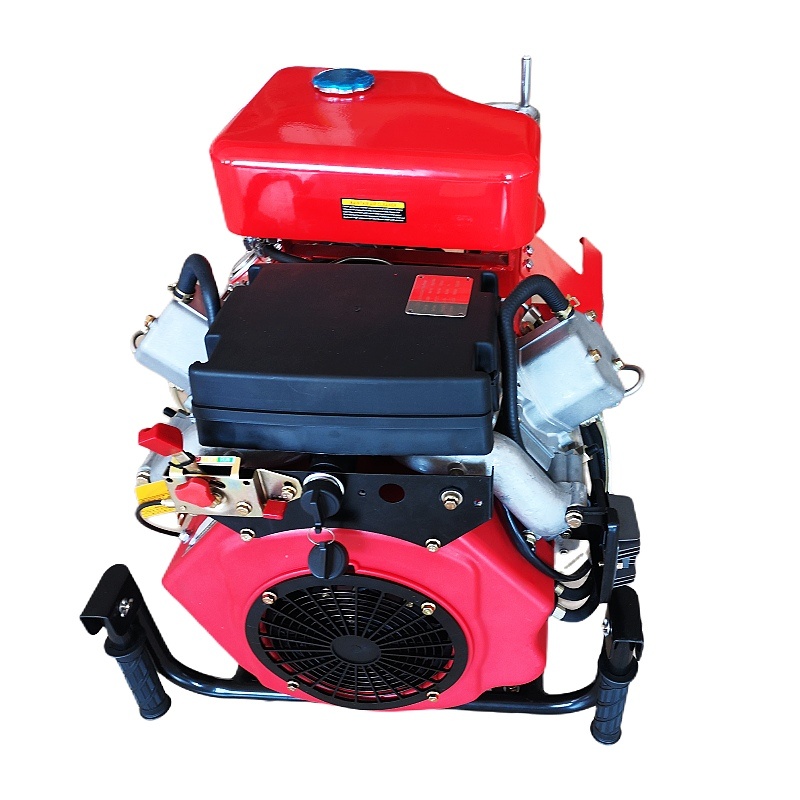

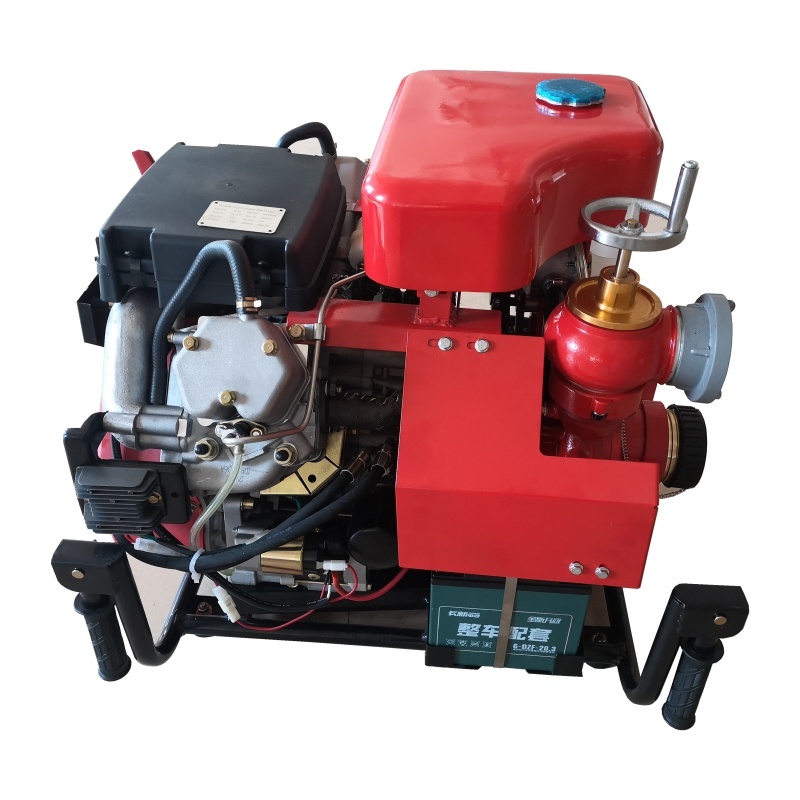

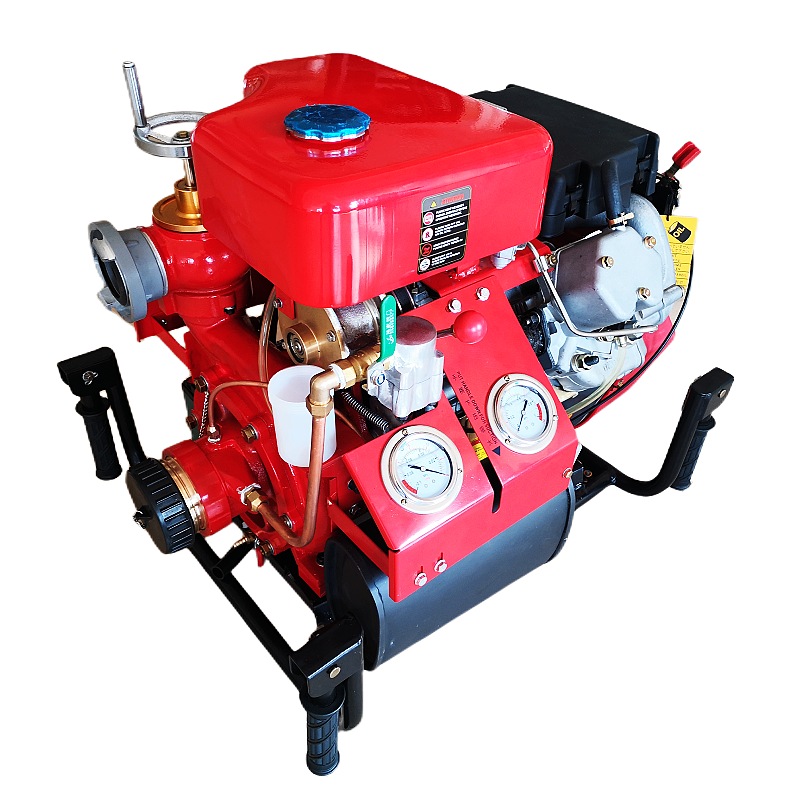

Diesel fire pump BJ22B

Application: mainly for fire fighitng, especailly for the places where fire vehicles could not reach  for it has unique flexible advantages. It is an ideal fire fighting equipment for all kinds of fire brigades, flammable and explosive enterprises in cities/towns, cultural relic protection units, large warehouses, oil depots, stations, docks, ports, ships, temples, freight yards, forestry and other units that need fire prevention. It can also be used for flood fighting and drainage, long-distance water supply, site washing, etc.


BJ22B/25HP portable fire pump with diesel engine data
Engine Model V-Twin,air-cooled,4-stroke,WS188
Displacement 8750ml
Max theoretical power 14kw/25hp
Pump body Single stage centrifugal
Fuel tank capacity 7L
Oil capacity 2.3L
Starting system Recoil/electric start
Max flow 1200L/min
Pressure 0.6mpa
Max suction depth ≥7m
Priming type Rotary vane vacuum pump
Priming time ≤20s
Pump head 80m
Inlet 80mm
Outlet 65mm
Weight 100kg
Appearance size 720*630*630mm
