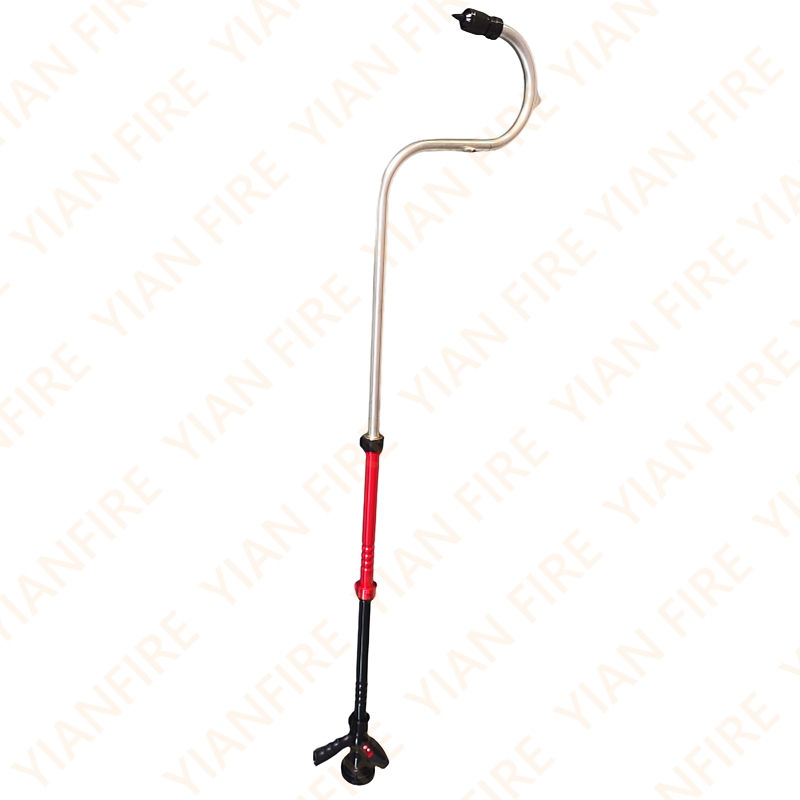

Special fire nozzle- smoke exhaust fire nozzle

Application: A smoke exhaust fire nozzle/gun likely refers to a specialized firefighting tool used for both suppressing fire and ventilating smoke. It is designed to rapidly and effectively clear dense smoke and hazardous gases from fire scenes, creating a safe environment for firefighters and trapped individuals. It plays a vital role in firefighting operations, particularly in warehouses, commercial buildings, large-scale structures, floors and basements, subways, underground malls, and tunnels. This equipment enables swift response to smoke dispersion, reduces fire damage, and secures critical time for rescue efforts.
 special fire nozzle fire hose nozzle smoke exhaust fire water cannon fire fighting nozzle special fire gun fire truck equipment smoke exhaust lance
Technical data:

Model QDH6.0/3.5IIPY    Opening/shutoff by operating handle(ball valve switch)
Material Body:Aluminum,Tube:304 stainless steel  Surface treatment hard anodisation
Working pressure 3.5-16bar Connection type Storz,John Morris, Gost,Machino,  NH,etc
Flow 210LPM@6BAR shooting distance 22M
Fog Angle 0-180° Total length 2.16M
Operating torque
7N.m
Maximum exhaust air volume ≤3400m³/h
Inlet size 1.5”-2”-2.5” (40-50-65mm) weight 3kg
